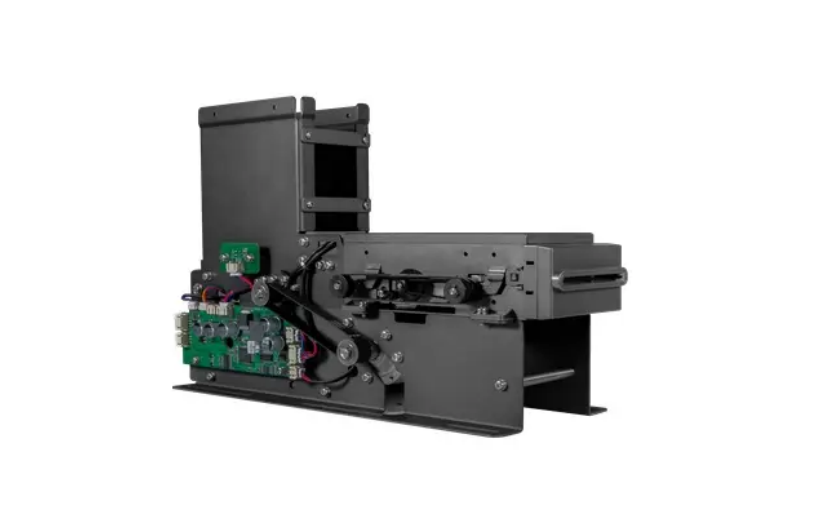

SIM Card Dispenser TTCE-K100-3
Card dispenser with IC/RFID card reader & writer, magnetic card reader. Multi-function card dispenser, supporting IC card, RF card, SIM card, modular design facilitates disassembly and maintenance. A small-sized card dispenser that supports multiple types of cards, with a modular card reader.
- Card dispensing with card reading/writing function
- IC/FRID card read/write, Front-end magnetic card read only
- By changing the channel space can accept all the card thickness between 0.7-1.0mm
- Max loading 300pcs card thickness 0.76mm compare standard 150pcs cards
Features of TTCE-K100-3
- Card dispensing with card reading/writing function
- IC/FRID card read/write, Front-end magnetic card read only
- By changing the channel space can accept all the card thickness between 0.7-1.0mm
- Max loading 300pcs card thickness 0.76mm compare standard 150pcs cards
Details of TTCE-K100-3
K100-3 supports Front-end magcard read, IC card read and write, RFID card read and write protocol. Modular install structure makes it convenient for clients to customize and maintain machine. Smart design and parts assemble with best quality makes it fresh in appearance, and precision meets or overpass same type products all over the world. Excellent circuit design takes multipleprotection into consideration. It is one of few card issuing, read/write equipment integrated with read/write, issuing card function. It supports ICcard type more than other same product.
Specification of TTCE-K100-3
| Card Type | IC card: ISO7816-1、2、3、4 standard Support T=0,T=1 CPU Card Support T=0,T=1 PSAM Card Contactless card: ISO/IEC 14443 Type A & Type B Support Mifare 1 S50,S70,UL card,Mifare Plus,Mifare Desfire |
| Card Specification | Material: Paper card and PC card Width: 54 ± 0.5 mm(W) Length: 85 ± 0.5 mm Thickness: 0.7 ～1.0mm |
| Power Supply | DC24V |
| Operation Current | Idle:<100mA Peak:<2000mA |
| Interface | RS232/USB |
| Card Hopper Capacity | 150 pcs standard cards at thickness of 0.76mm (Note: stacker capacity can be extended to 300 pcs or 400 pcs) |
| Alert Lamp | Card entry alert Few card alert Power on alert IC card power on alert |
| Environmental Conditions | Operation Temp: 0 ℃ to 45℃ Operation Humi: 30～90% (Relative Humidity) |
| Life Time | Drive parts: 500,000cycles Magnetic head: 800,000cycles IC card contact: 300,000cycles |
| Weight | About2.5kg |

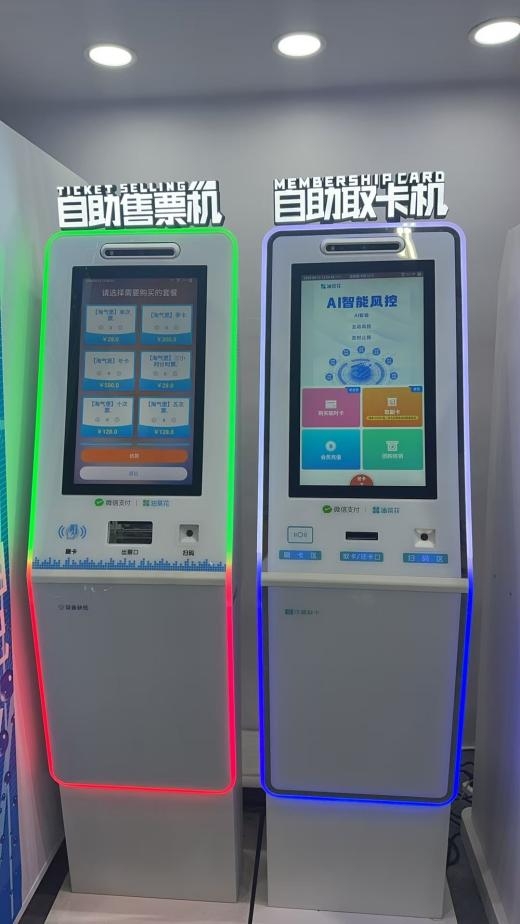

Application of TTCE-K100-3
This dispenser automates ATM card issuance and secure RFID transactions for banking and financial services. It is used by public transportation hubs for improvements in passenger convenience through fast ticketing and travel card distribution. It is used for secure issuance of entry cards for hotels, offices as well as event venues’ access control systems. It supports quick issuance of membership and gift cards in retail and loyalty programs to give customers a better experience. It is better for parking facilities and ticketing kiosks with its fast card dispensing and card reading capability.
Our Advantages
With an experienced R&D team, We can satisfy the diverse customization needs of our customers.
Expert Team and Customized Services
Our professional team excels in collaboration, delivering high-quality results while offering customized solutions to meet each customer’s unique needs and specifications.
Comprehensive One-stop Solution
We provide a complete package, from initial manufacturing to ongoing support, including tailored ODM and OEM services, ensuring a seamless experience.
Global Export Experience
With 23 years of development, our modules are exported worldwide, bringing extensive market insights and customer experience across global markets.
