RFID Card Dispenser TTCE-K720
Card Dispenser With RFID Card Reader & Writer.
- K720 is a best-selling product
- Supports installation of various card reader brands
- Very stable and durable
Features of TTCE-K720
- RFID Card Read & Dispense Module: Supports secure card transactions with an RS232 interface.
- Adjustable Card Thickness: Accepts cards between 0.2mm and 2.0mm, ensuring versatility.
- High Card Capacity: Holds up to 300 cards (0.76mm thickness) for continuous operation.
- Removable Collection System: Allows excess cards to drop to the kiosk bottom for extended storage.
- Seamless Integration: Compatible with self-service kiosks, banking terminals, and access control systems.
Details of TTCE-K720
The TTCE-K720 RFID Card Dispenser is a high-performance card reading and dispensing module designed for secure and efficient card issuance. With RFID reading capabilities and an RS232 interface, it ensures seamless integration into self-service kiosks, banking terminals, and access control systems. The dispenser’s adjustable channel space supports various card thicknesses (0.2mm-2.0mm), making it a versatile and reliable solution for different industries.
Specification of TTCE-K720
| Card Type | Contactless card: ISO/IEC 14443 15693 Type A & Type B Support mifare 1 S50, S70, UL card, mifare plus, mifare desfire |
| Card Specification | Material: paper card and PC card Width: 54 ± 0.5 mm(W) Length: 85 ± 0.5 mm Thickness: 0.5 ～1.2mm |
| Power Supply | DC24V |
| Working Current | Idle: <100mA Peak: <2000mA |
| Interface | RS232/USB |
| Card Hopper Capacity | 150 pcs standard cards at thickness of 0.76mm (Note: stacker capacity can be extended to 300pcs or 400pcs) |
| Alert Lamp | Card entry alert Few card alert Power on alert |
| Environmental Conditions | Operation temp: -5 ℃ to 50℃ Operation humi: 0～90% (relative humidity) |
| Life Time | Drive parts: 500,000cycles |
| Certified | |
| Weight | About |

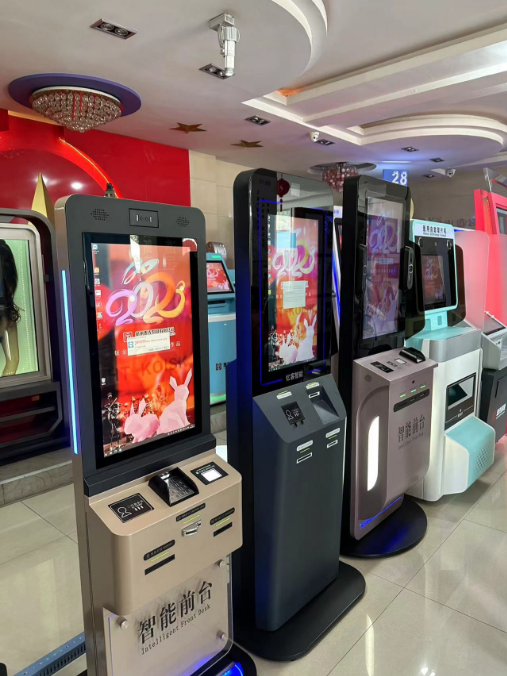

Application of TTCE-K720
In banking and financial services, the TTCE-K720 automates ATM card issuance and RFID-based transactions. Public transportation systems use it for fast ticketing and travel card distribution, improving passenger convenience. Access control systems in hotels, offices, and event venues rely on it for secure RFID entry card issuance. In retail and loyalty programs, it enables the quick issuance of membership and gift cards. Additionally, parking and ticketing kiosks benefit from its efficient RFID card dispensing capabilities.
Our Advantages
With an experienced R&D team, We can satisfy the diverse customization needs of our customers.
Expert Team and Customized Services
Our professional team excels in collaboration, delivering high-quality results while offering customized solutions to meet each customer’s unique needs and specifications.
Comprehensive One-stop Solution
We provide a complete package, from initial manufacturing to ongoing support, including tailored ODM and OEM services, ensuring a seamless experience.
Global Export Experience
With 23 years of development, our modules are exported worldwide, bringing extensive market insights and customer experience across global markets.
